Punching Mos Plates
- At RITZ 360 Computer corridor check STAP wheel lock pin OUT
and the X/Y table on PARK position.
If not the case DO all functions reset
manually else follow next step.
- Do login to wefosc user mos passwd ********
- Open a xterm and check wmos environment active (ccsPerfMon).
If not do
vccEnvStop -e $RTAPENV then vccEnvStart -e $RTAPENV
- After a manual reset or environment restart do COLD START
i.e. type efoopsMosRun (Mos init ~5min). mosuifMOS will
be open, check all ONLINE and close it.

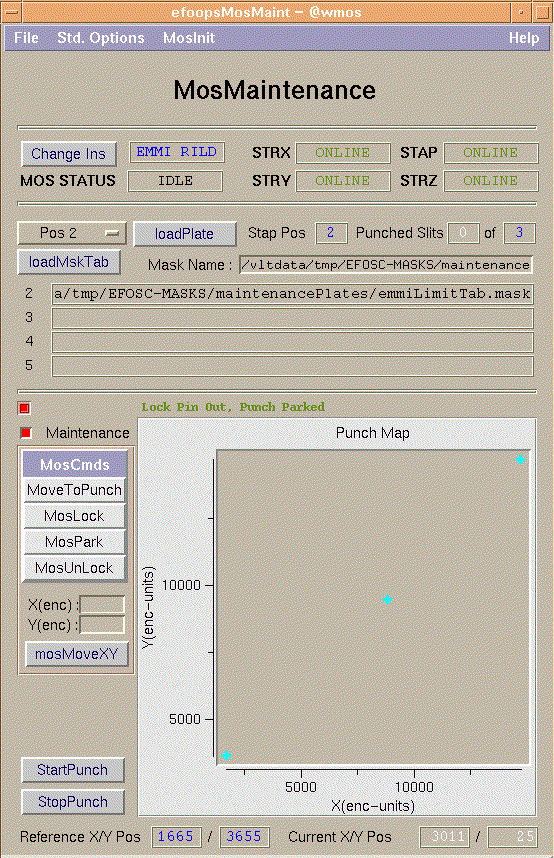

- Open a xterm and type efoopsMosMaint(panel
image zoom). A dialog box will be open asking for instrument selection.
Only EFOSC2 is remaining.
- If all the MOS functions are ONLINE, select stap positions
(pos 2 - 5).
- Press buttom loadPlate to load plate on the selected
wheel position. Warning for reference check the following
picture here. White cross
on the plate shows the face to be DOWN on EFOSC aperture
wheel.
- Press buttom loadMaskTab to load mos table.
A file selection panel appears : mask files are normally to be found thru
Module button in /home/mos/MOS @ wefosc
Cyan cross points will be plotted on Punch Map widget.
- Check table on the punch map against the hardcopy given by the
observer. If they do not match try loadMaskTab again or
just go to the next table and check it afterward with the Observer.
WARNING on hardcopies there is a mirror effect. If they match
go to next step.
- To punch press buttom StartPunch. See the xterm messages,
the X/Y reference and X/Y current positions fields. The Machine
will move first in X then Y direction to the reference position.
Once in position will do the punch. A blue box on the corresponding
cyan point will be plotted on the Punch Map widget.
Warning: Do not use maintenance section unless you know the
MOS command sequence
- If a cold start is needed and this panel is open, go to MosInit menu bar option and select mosInitRun
- Use button "Change Ins" to select either EMMI
- MOS Checklist here
